Spreading anchor, plastic

Art.nr. 2347723 | EAN 4012197504670

Productbeschrijving
Productbeschrijving

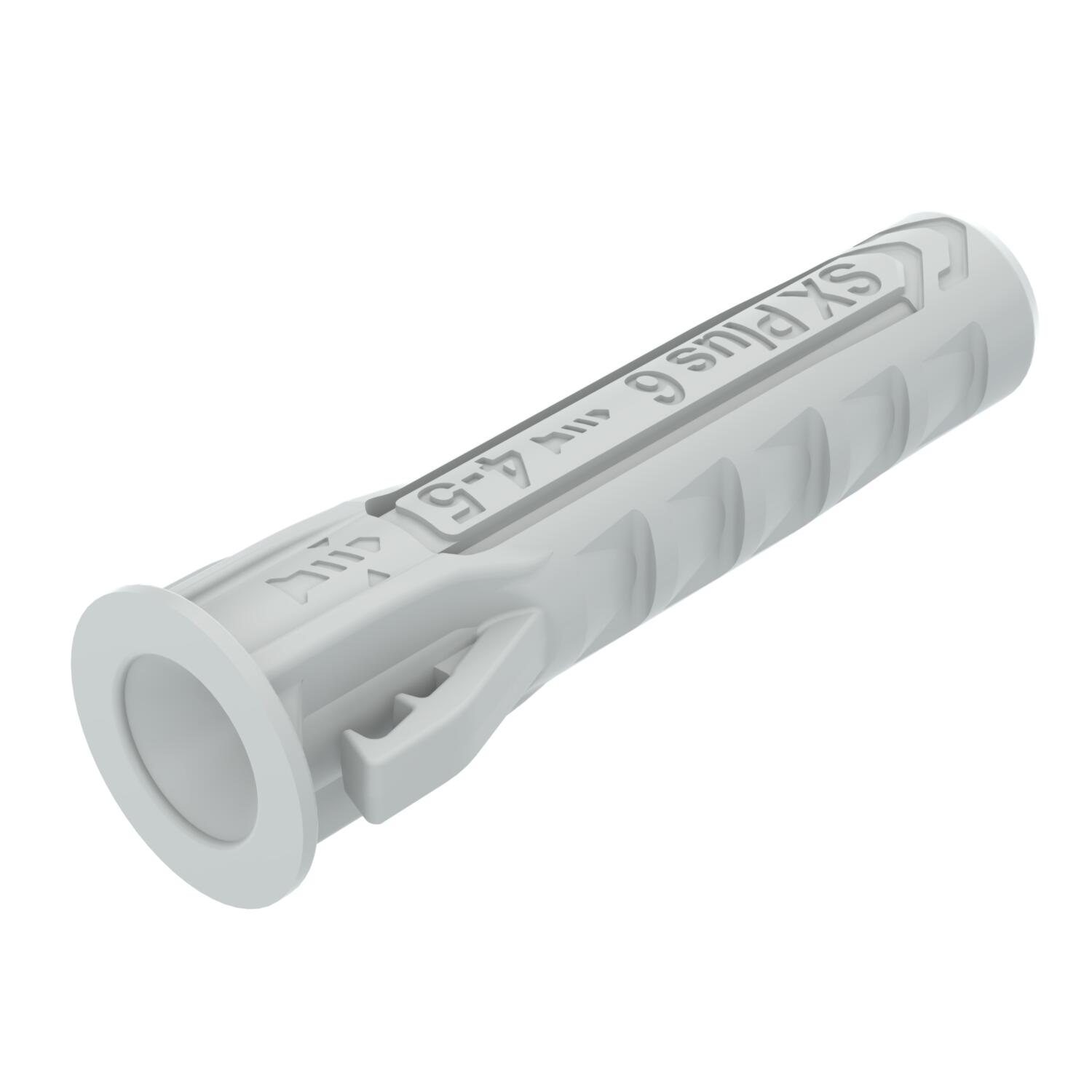

Nylon spreading anchor for mounting components on walls and ceilings. Suitable for solid building materials such as concrete, sand-lime brick and masonry. With pre-fixing of the screw for easy overhead mounting. The given load values are valid for wood screws with the specified diameter.
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
  • halogeenvrij; zonder chloor, fluor en broom
  • Torx-schroef
  • Kruiskop- en sleufschroeven (Phillips)
  • Kruiskop pozidrive
Technische gegevens

Technische gegevens

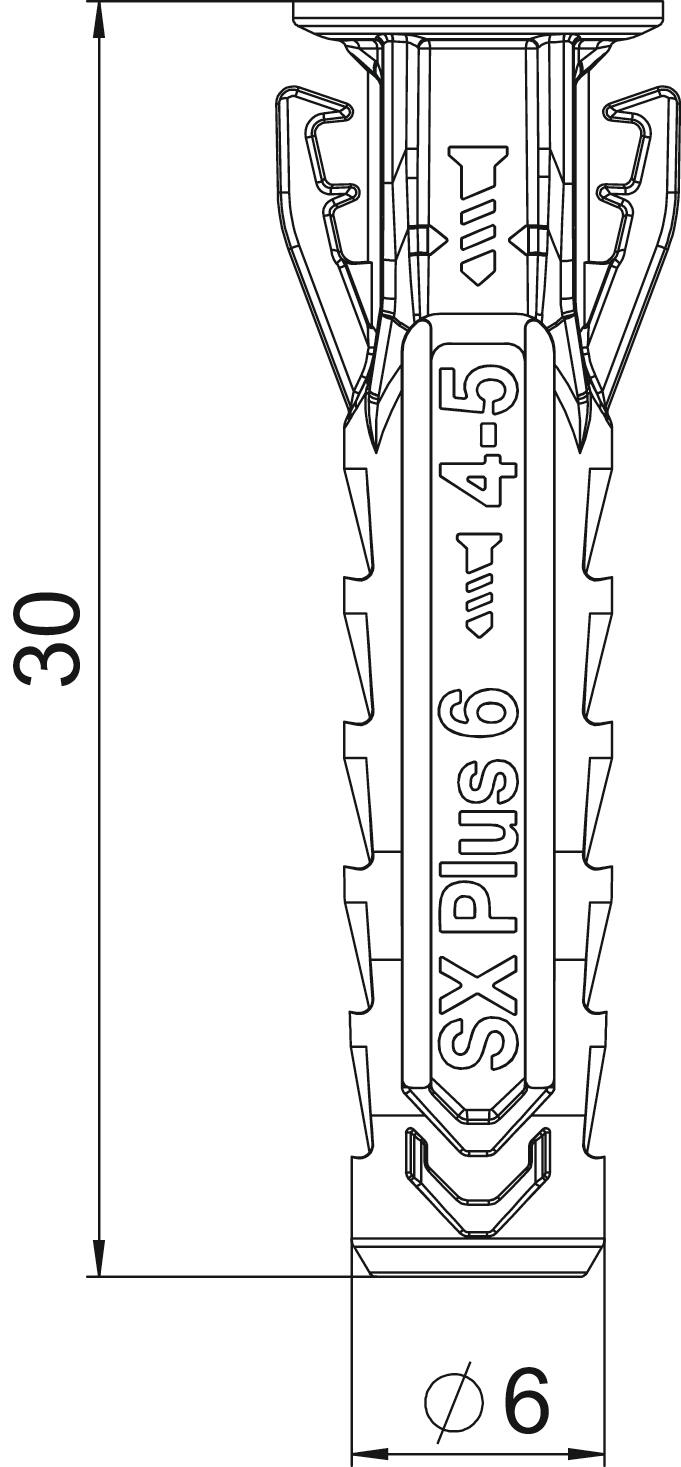

Boorgatdiepte 40 mm
Diameter 6 mm
Dimensie 6x30
Geschikt voor bevestiging met kabelbinder nee
Geschikt voor schroefdiameter max. 5 mm
Geschikt voor schroefdiameter min. 4 mm
Geschikt voor zeskant-houtschroef ja
Kleur lichtgrijs
Lengte 30 mm
Maat D 6 mm
Maat L 30 mm
Materiaal Polyamide
Met schroeven nee
Uitvoering spreidplug
Alle typen

Alle typen

Type Lengte Diameter Boorgatdiepte Art.nr. Aantal kl. VKE
SX Plus 6x30 30 mm 6 mm 40 mm 2347723
100 Stuks
SX Plus 8x40 40 mm 8 mm 50 mm 2347726
100 Stuks
SX Plus 10x50 50 mm 10 mm 70 mm 2347729
50 Stuks
SX Plus 12x60 60 mm 12 mm 80 mm 2347732
25 Stuks
SX Plus 5x25 25 mm 5 mm 35 mm 2347720
100 Stuks
Downloads

Download

Voor dit product zijn geen bestekteksten beschikbaar
