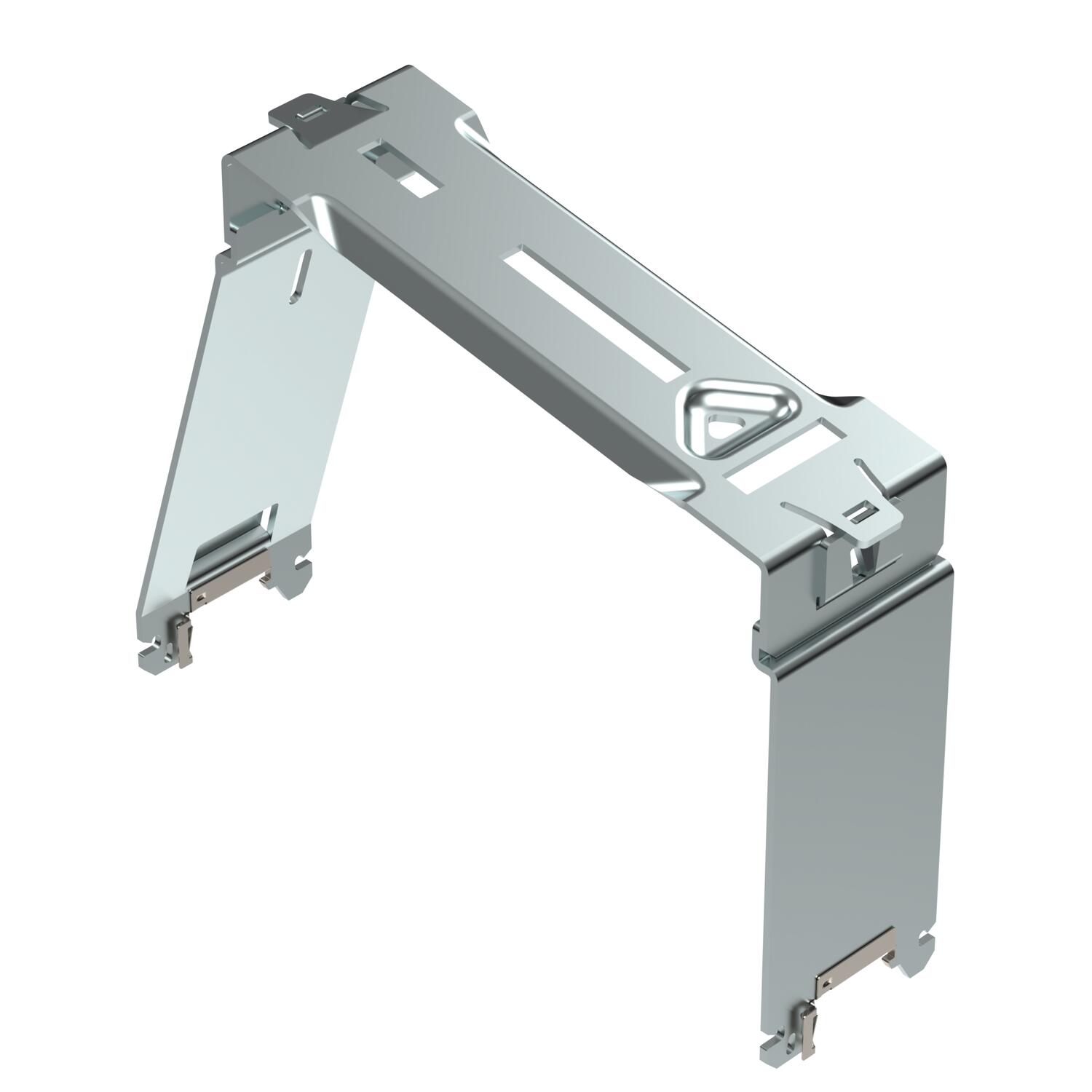

10° Long support for PV module mounting, south orientation, flat roof
Art.nr. 5901665 | EAN 4012197514143
- Productbeschrijving
-
ProductbeschrijvingLong support for PV module mounting on flat roofs in south orientation. Mounting in combination with support profile TPF 35 and universal clamp KLU or end and connection clamps with springs (KLE F/KLZ F). Angle of inclination 10°. Lockable fastening on support profile.
- Technische gegevens
-
Afmetingen
Breedte 80 mm Dimensie 306,8x242,2x80 Hellinghoek max. 10 ° Hellinghoek min. 10 ° Hoogte 237,7 mm Kleur zink Lengte 281,4 mm Materiaal staal Oppervlak bandverzinkt zink/aluminium, Double Dip Uitvoering fotovoltaïsch verbindings- en bevestigingselement overige Verstelbaar nee With module earthing nee - Alle typen
- Downloads
-
Voor dit product zijn geen bestekteksten beschikbaar
