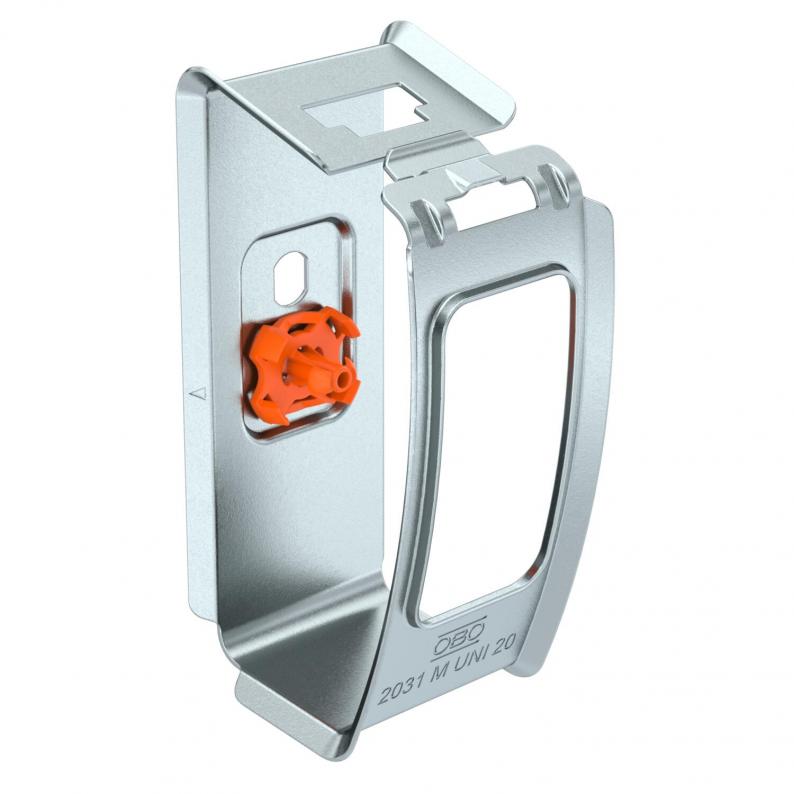

Collecting clamp Grip M UNI 20, metal FS, for direct fastening

Type 2031 M UNI 20 FS
Art.nr. 2207214
EAN 4012197490034
Art.nr. / Type
2207214 / 2031 M UNI 20 FS
Aantal leidingen NYM 3 x 1,5
20

Kl. vpe: 50 Stuks

Stuks

Omschrijving

Metal collection clamp for laying cables on walls or ceilings. Direct fastening via a plastic adapter or via classic screw mounting through a separate fastening hole Ø 6 mm. Universal adapter for single-handed mounting with various firing tools, such as from Hilti, Würth, Spit, Bosch. High mechanical resistance also in the event of fire. Halogen-free, non-combustible. Suitable for safe mounting above fire protection ceilings. Also approved as a cable-specific variant for the maintenance of electrical functionality to DIN 4102 part 12. The lock can be opened without tools. Detailed information on the approved routing variants can be found in the appropriate testing documentation.
  • Communautés Européennes, EG-conformiteitsverklaring volgens EG-richtlijnen
  • UKCA conformiteitsverklaring
  • gas-/accu-aangedreven tacker
  • Functiebehoudklasse E30
  • Functiebehoudklasse E60
  • Functiebehoudklasse E90

Technische gegevens

Technische gegevens

Functiebehoudja
Aantal leidingen NYM 3 x 1,520
Halogeenvrijja
met plugnee
ROHS-conformja
Dimensie20x NYM3x1,5
Oppervlakbandverzinkt
Materiaalstaal
Kleurzink
ProductserieUNI-Serie

Downloads

0 geselecteerd

Specificatieblad (1)
Catalogi & brochures (2)
Verklaringen (3)
Productfoto's (2)

Uitvoeringen

2031 M UNI 20 FS
Art.nr.
2207214
Aantal leidingen NYM 3 x 1,5
20
