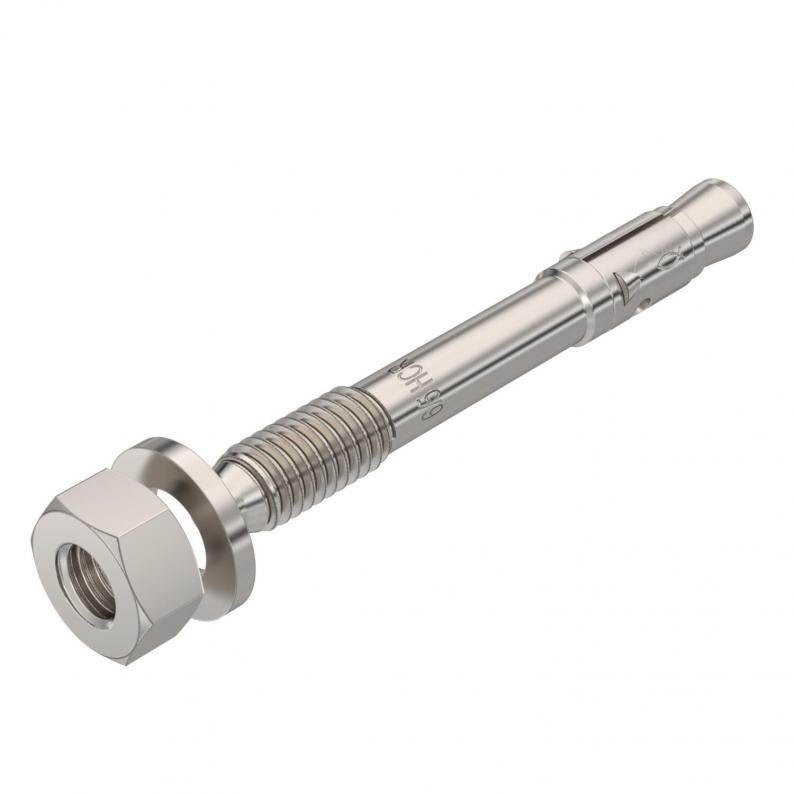

Nail tie with thread A5
Type FNAII 6x30M6/5A5
Art.nr. 3499026
EAN 4012197507381



Art.nr. / Type
Kl. vpe: 50 Stuks
50Stuks
Stuks
Omschrijving
Nail tie with thread for the anchoring of, for example, fire protective products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer. When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
Technische gegevens
Afmetingen
| Lengte | 55 mm |
|---|---|
| Maat L | 55 mm |
Technische gegevens
| Schroefdraad metrisch | 6 |
|---|---|
| Schroefdraad | M6 |
| Zelfborend | nee |
| Toelatingen aanwezig | ja |
| Bevestigingsinrichting | Overige |
| Klemdikte | 10 mm |
| Uitvoering | Inslag |
| ROHS-conform | ja |
| Boringsdiameter min. | 6 mm |
| Boorgatdiepte | 45 mm |
| Dimensie | 6x50 |
| Materiaal | Roestvast staal |
| Kleur | roestvrij staal |
| Geschikt voor boumateriaal | Kalkzandsteen, Beton, Natuursteen |
| Montagetype plug, anker | Doorsteekmontage |
Downloads
0 geselecteerd
Specificatieblad (1)
Verklaringen (4)
Certificaten (1)
Productfoto's (2)
Uitvoeringen
Type
Schroefdraad
Art.nr.
FNAII 6x30M6/5A4
M6
3499024
FNAII 6x30M6/5A5
M6
3499026
FNAII 6x30M6/5
M6
3499020
FNAII 6x30M6/5A4
Art.nr.
3499024
Schroefdraad
M6
FNAII 6x30M6/5A5
Art.nr.
3499026
Schroefdraad
M6
FNAII 6x30M6/5
Art.nr.
3499020
Schroefdraad
M6
